The XCEL EDGE Fxi split AC offers ultimate comfort with FlexiCool’s 6 modes and Turbo Mode for instant relief. Enjoy clean air with HD filters and experience peace of mind with advanced refrigerant leakage detection. Smart sensors ensure cooling moves with you, wherever you go. With Refrigerant Leakage Detection, High Ambient Working and Auto Swing, it’s smartly built for durability and efficiency.
General
|
TONNAGE CATEGORY |
1.0 TR |
|
MAXIMUM CAPACITY* |
4080 Watts |
|
FULL LOAD CAPACITY (100% Load Rated) |
3450 Watts |
|
HALF LOAD CAPACITY (50%) |
1750 Watts |
|
FULL LOAD POWER INPUT* (100% Load Rated) |
1050 Watts |
|
HALF LOAD POWER INPUT*(50% load) |
435 Watts |
|
ANNUAL POWER CONSUMPTION-COOLING ONLY |
685.62 |
|
LABEL PERIOD |
1st July,2022 – 31st Dec,2025 |
|
BEE STAR RATING*** |
3 Star |
|
ISEER VALUE |
3.9 W/W |
|
RATED POWER SUPPLY |
230 – 1 – 50 V-PH-Hz |
|
RATED AMP |
4.6 Amp |
|
NET WEIGHT |
8.3 / 21.7 Kgs(IDU/ODU) |
|
AIR FLOW RATE |
380 CFM |
|
INDOOR NOISE LEVEL (H/M/L) |
40/38/32 db |
|
FAN MOTOR (INDOOR) |
4 No.of Speeds |
|
WITH CONNECTING KIT PIPE |
YES |
|
VALVE SIZE |
3/8″ x 1/4″ Inch |
|
MOISTURE REMOVAL RATE |
1.2 Kg/Hr |
OVERALL SIZE
|
|
INDOOR UNIT (HEIGHT) |
275 mm |
|
INDOOR UNIT (WIDTH) |
800 mm |
|
INDOOR UNIT (DEPTH) |
188 mm |
|

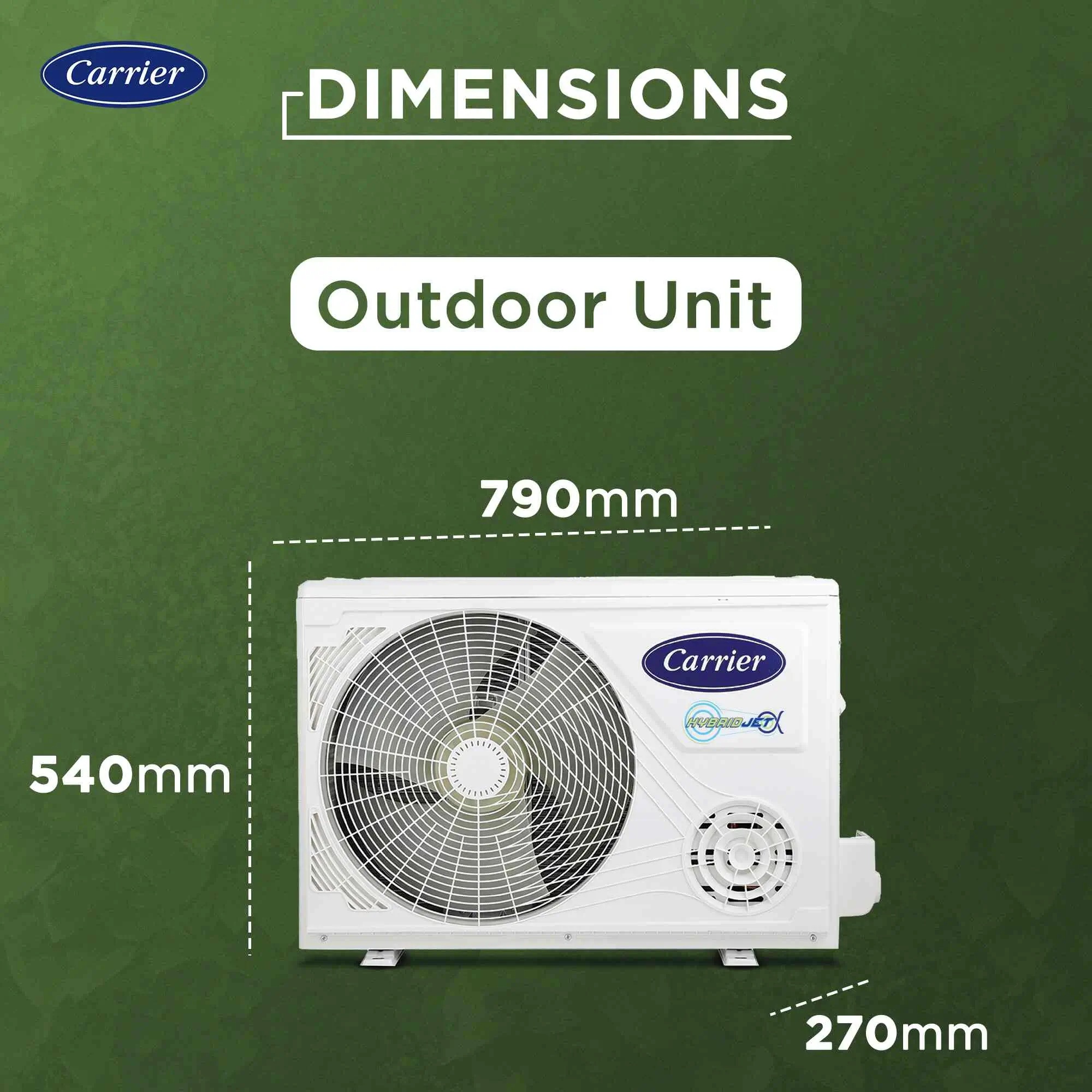

OUTDOOR UNIT (HEIGHT) |
540 mm |
|
OUTDOOR UNIT (WIDTH) |
790 mm |
|
OUTDOOR UNIT (DEPTH-with Grill) |
270 mm |
